I-ROBO

제품사양

Model Stroke Sensor Motor
Series
(1)		 Model
(2)		 Lead
(3)		 Stroke
(4)		 Type
(5)		 Qty
(6)		 Sensor Position
(7)		 Brand
(8)		 Model
(9)
SAN 45 10 -200 S +35 R [ MITSUBISH HF-KP13 ]
(1) Series SAN : Smart Actuator
(2) Model 45 / 65 / 65H / 100 / 150
(3) Screw Lead
  • 05 : 5mm
  • 10 : 10mm
  • 20 : 20mm
(4) Stroke
  • SAN45(H) : 050 ~ 500
  • SAN65(H) : 050 ~ 500
  • SAN100 : 050 ~ 1000
  • SAN150 : 050 ~ 1600
(5) Type
  • - : Standard
  • S : Straight motor mount
  • P : Parallel motor mount ( PL / PR / PB )
(6) Sensor quantity 3S / 2S / 1S
(7) Sensor position
  • L : Left
  • R : Right
(8) Motor Brand MITSUBISHI
YASKAWA
Panasonic
RS Automation
LS Mecapion

Cool Muscle
FASTECH
IMS
Oriental
Autonics
MOOMS'
Ereatech
(9) Model
  • HF-KP 053 / 13 / 23 / 43 / 73
  • SGMJV-A5 / 01 / 02 / 04 / 08
  • MSMA-5A / 01 / 02 / 04 / 08
  • CSMT-A5 / 01 / 02 / 04 / 08
  • SAR 5A / 01A / 02A / 04A /08A
  • 17 S30A / L30A, 23 S30A / L20A, 56 B10A / B20A, 60 A10A
  • EzM-42 / 26 / 60 / 86
  • MDM17 / 23, MDI17 / 23
  • AS 546A / 566A CSK 29
  • AK 42 / 56 / 60 / 85
  • STM 17 / 23 / 24
  • EDI 42V24 / 56V48

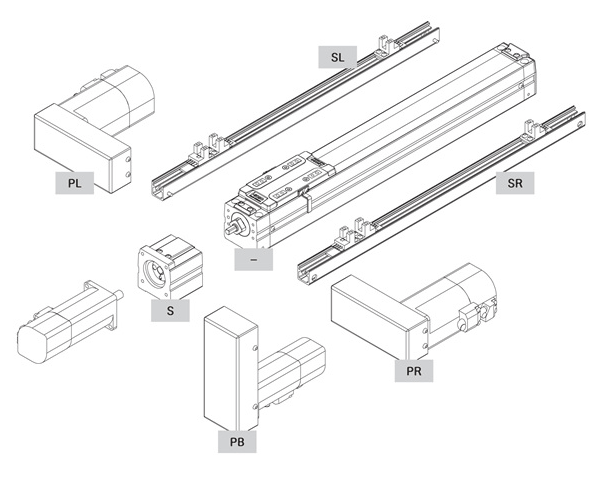

제품소개
- Standard
S Straight motor mount
PL Parallel left motor mount
PR Parallel right motor mount
PB Parallel bottom motor mount
SL Left sensor mount
SR Right sensor mount
